Two Axes DRO Kits For Lathes

Name: Two Axes DRO Kits For Lathes
Brand: SINO
Price: 1 USD

China Two Axes DRO Kits For Lathes factory

Brand Name : SINO

Model Number : SDS6-2VF, KA-300, KA-500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : 2 axes RS232-C metal LED lathe machine DRO kit

Usage : 2 axes lathe positioning & RS232-C output

System : 2 axes LED DRO SDS6-2VF

Scale model : KA-300 and KA-500

Signal : TTL or RS422/EIA-422-A

Resolution : 5 micron / 1 micron

DRO mounting : slide truck with 50C rack

Meas. travel : Testing travel: 70-1020mm

Display : 3 units of green LED

Voltage : Linear ruler: +5V, DRO: 100V - 240V

Contact Now

SINO 2 axes metal LED lathe machine DRO kit RS232-C SDS6-2V mounting on slide box with two linear rulers

This DRO kit is special for 2 axes lathe machine positioning requirement.

The RS232-C output LED DRO SDS6-2VF should be mounted on the lathe's slide truck.

The KA-300 ruler should be for axis Z, and KA-500 ruler should be for axis X.

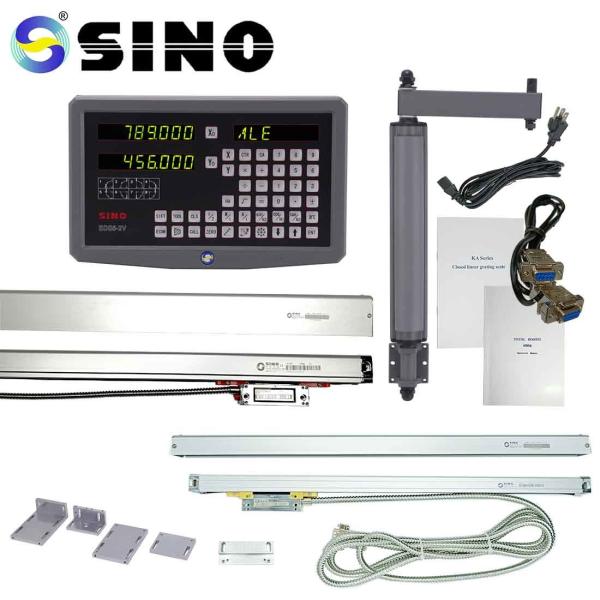

Package list:

Item name	2 axes RS232-C lathe machine DRO kit
Digital Readout (DRO)	SDS6-2VF
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe (50C)
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom

Detail Information:

Two Axes DRO Kits For Lathes

Pin Description:

Two Axes DRO Kits For Lathes

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Two Axes DRO Kits For Lathes

It's a sample that a DRO is mounting on the slide box of a lathe:

Two Axes DRO Kits For Lathes

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

Two Axes DRO Kits For Lathes
