SDS6-2V 2 Axis SINO Digital Readout System DRO For Milling Lathe

SDS6-2V 2 Axis SINO Digital Readout System DRO With KA300 Encoder Linear Scale For A Milling Lathe

The SDS6-2V digital readout, an all-purpose DRO, uses the most recent 16 bit SCM technology and can replace all types of basic and special functions required by the SDS2 series.

Basic SDS6-2V Digital Readout Functions

Auxiliary Zero Position Function for 200 Points

Middle Split Action

Display of "mm/inch" conversion

Diameter/Radius Switch Display

Compensation for Segmented Errors

Compensation for Linear Errors

Memory for Power Interruptions

Bedtime Switch

Calculations in mathematics

Optional RS-232-C interface

Sino Digital readout system SDS6-2V DRO's improved functions

Functions of Machining

PCD circumferential division (applicable to spark testers and milling machines)

Function for cutting involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

Specifications :

A multifunctional 2-axis digital readout is the DRO SDS6-2V. By altering the system settings, it can adapt to the various machining requirements. It contains several graphical machining features, including the ability to calculate arcs, drill holes with uniform spacing around the circumference, drill holes perpendicular to a line, process angular surfaces, calculate angles, measure taper, and use digital filters. These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

Product image /photos:

The rack in the picture is optioned, not standard product.

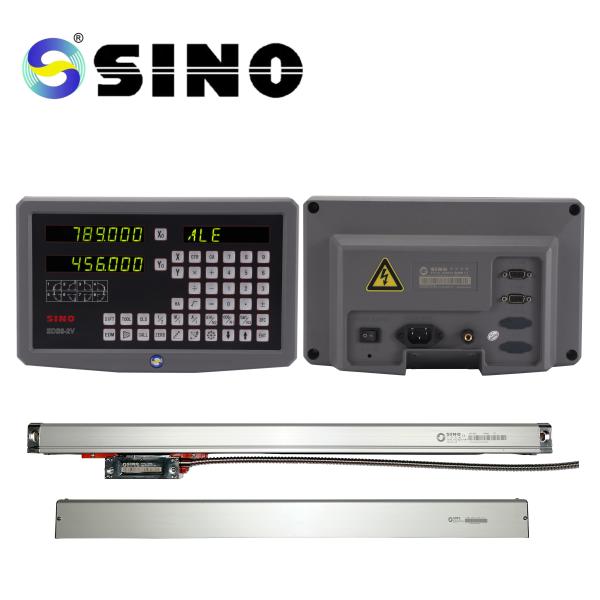

2 Axis SINO Digital Readout System

KA300 SINO Digital Readout System

SDS6-2V SINO Digital Readout System

SDS6-2V 2 Axis SINO Digital Readout System DRO For Milling Lathe Images
