SDS2-3VA 3 Axis Digital Readout Meter Sino Glass Linear Ruler

Small Milling Machine SDS2-3VA Professional LCD DRO 3 Axis Digital Readout Meter

These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

A high-performance universal display console with milling, turning, and grinding capabilities is available with the SDS2-3VA.

This three-axis type allows for the connection of up to three linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the guide below for encoder compatibility.

sturdy die cast housing and a front panel membrane with tactile switches.

a sizable, simple-to-read LCD display.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are just a few of the features.

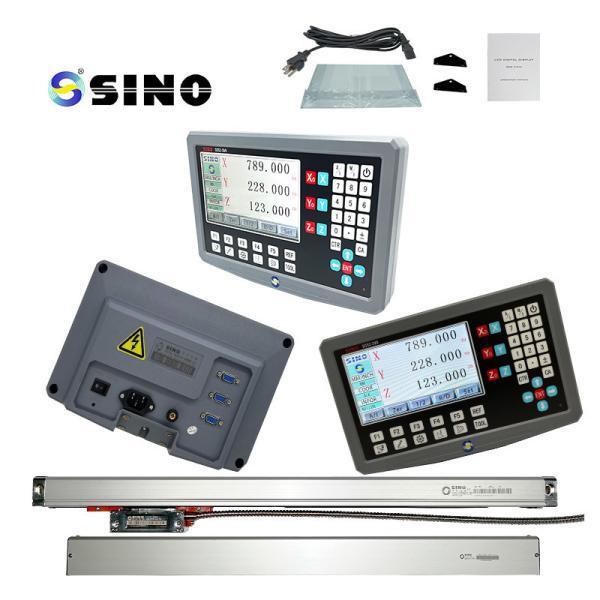

Product image /photos:

The rack in the picture is optioned, not standard product.

SDS2-3VA 3 Axis Digital Readout

Sino 3 Axis Digital Readout

SDS2-3VA 3 Axis Digital Readout Meter Sino Glass Linear Ruler Images
