Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Product Categories
Guangzhou Sino International Trade Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

  • 1
  • 2

Brand Name : SINO

Model Number : SDS6-3V, KA300, Ka500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 days

Packaging Details : Carton

Name : Linear scale SDS6-3V DRO Sensor KA500

Number of Axis : 3 axis Dro + Ka500 ka300 ka200

Material : iron

Signal : Digital readout: TTL / RS422

Voltage : Digital readout: AC100-240V / 50-60Hz

Suitable for : Milling machine, boring machine, grinding machine

Resolution : 1um,5um,0.5um, 0.1um

Contact Now

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Description of Digital Readout Systems DRO

Digital Readout (DRO) Systems are employed to display the cutting tool's position in relation to a workpiece. Encoders installed on the axis detect the positions. They have a keyboard and a numeric display. Surface grinders, lathes, and milling and boring equipment are all equipped with DRO systems.

Digital Readout Systems DRO Details:

Resolution swap feature
Bolt hole designs and centerline determination

Zero reset, preset set, and tool error compensation

Metric / Metric, Inch / Absolute

prompts for messages and memory backup

85V–250V, Worldwide Usage

Specification of Digital Readout Systems DRO

  1. Range of supply voltage: AC 80V–260V; 50–60Hz; US Plug compatible

    15VA of power usage

  2. Operating temperature: between 0 and 45 degrees Celsius

  3. Temperature range for storage: -30 to 70 degrees Celsius

  4. Acceptable input signal for the readout is TTL/RS422 square

    wave
  5. Allowable input signal frequency: Less than 5MHz
  6. Display resolution: 5µm/1µm/0.5µm/0.1µm
  7. Min resolution of digital display angle : 0.0001/pulse

Packaging List :
1 PC 3 Axis LED digital readout SDS6-3V
1 PC Protection cover
1 PC Instruction Manual (English)
1 PC Cable

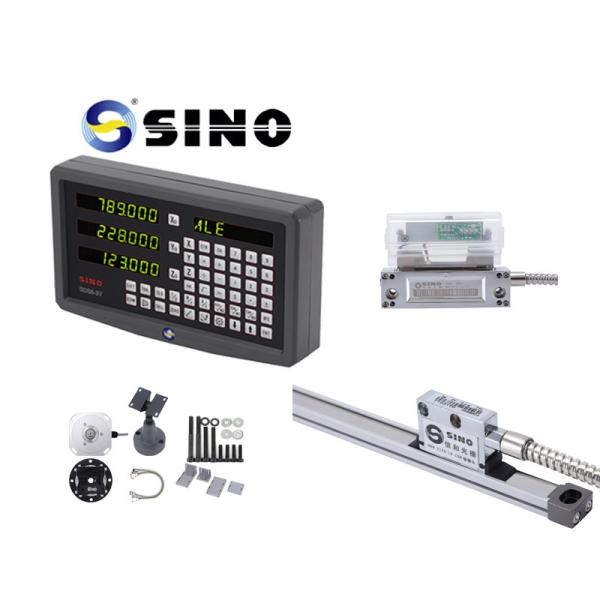

Product image /photos:

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

The rack in the picture is optioned, not standard product.

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V
