SDS2MS 2 Axis DRO Digital Readout Grinding Milling 60 Hz

Grinding Milling 60 Hz SDS2MS 2 Axis DRO Digital Readout

A variety of graphic machining functions are offered, including: a tool library, a taper measurement function for lathes, an EDM function for spark testers, and R-arc, equal-division, bevel, and diagonal boring functions for milling machines.
These features can greatly reduce the complexity of graphic machining.

Upgraded Functions:

1. Zero position memory for 200 groups.
2. Inclined punching lines.
3. Mathematical calculation.
4. Gradual processing and computation of rectangular inner cavities.
5. Tool diameter adjustment.
6. Bevel machining procedure.
7. Halt upon reaching the target value.
8. Zero-position-based automatic digital follow-up.

Specifications of SDS2MS 2 Axis Digital Readout

1. Voltage range: AC 85 V ~ 250 V / 50 Hz ~ 60 Hz.
2. Power consumption: 15 W (25 VA).
3. Coordinate systems for position calculation: 1-axis, 2-axis, and 3-axis.
4. Method for outputting data information using a 7-segment signed display (2-axis or 3-axis) with 8-digit characters and symbols.
5. Net weight: 2.9 lbs. / 1.3 kg.
6. Input/output signals: User-friendly interface compatible with programmable logic controllers (PLCs); TTL and EIA-422 open-collector output signals.
7. Input signal frequency tolerance: Over 100 kHz.
8. Connectable resolutions: 10 μm, 5 μm, 2 μm, 1 μm, 1 μm, and 5 μm.

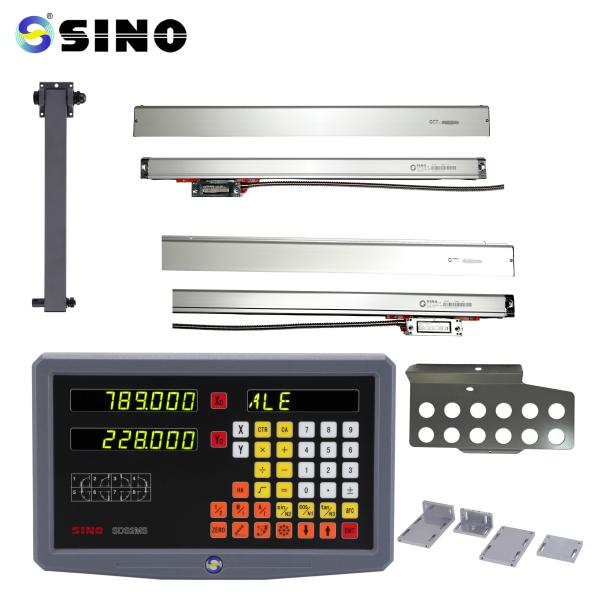

Product image /photos:

The rack in the picture is optioned, not standard product.

SDS2MS 2 Axis DRO Digital Readout Grinding Milling 60 Hz Images
